135691 Tennsmith SR48P Powered Forming Roll

SKU: 135691

In Stock

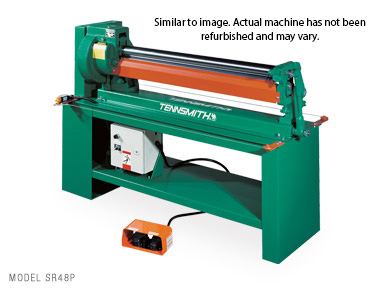

Pre-owned Tennsmith SR48P Powered forming roll. Serial number 15417. 3PH/230-480Volts.   Tennsmith’s SR48P powered slip roll combines all the features of the SR48 initial pinch roll with the productive advantage of electric-powered drive for production forming of curved parts and tubes made of 16ga and lighter sheet metal. Drive power for the SR48P is supplied by a heavy-duty, industrial quality gear reduction motor and roller chain directly to the gear train. The roll drive is controlled by a toggle action, shrouded foot pedal for instant forward and reverse action. The drive motor is equipped with an electromagnetic brake to prevent roll creep and over-forming. Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped; two magnetic motor starters; fully enclosed electrical box with pilot light; insulated reinforced conduit for all wiring; and fully enclosed drive train. The rolls and gears are mounted in hardened bronze bushings for long life and precision operation.

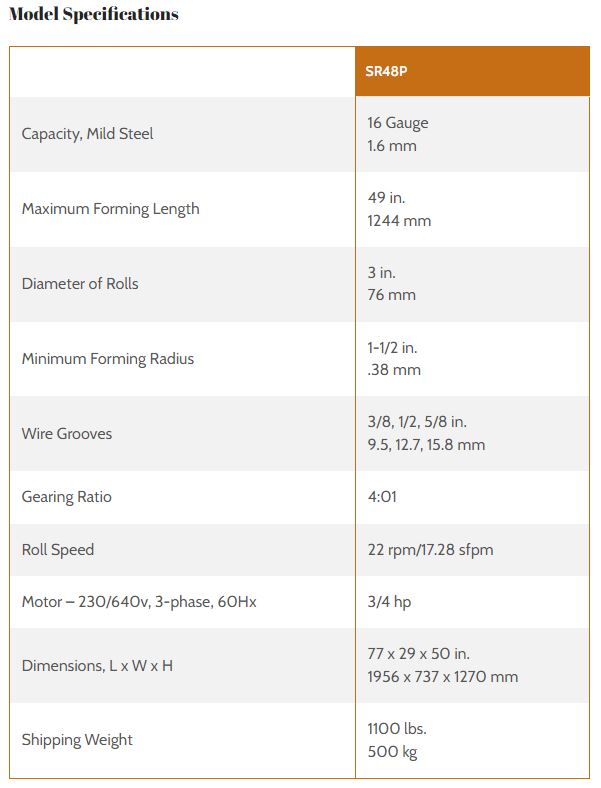

Specifications

Collection
Manufacturer
Inventory Type
Machine Type
Applications , , ,
Item Number
