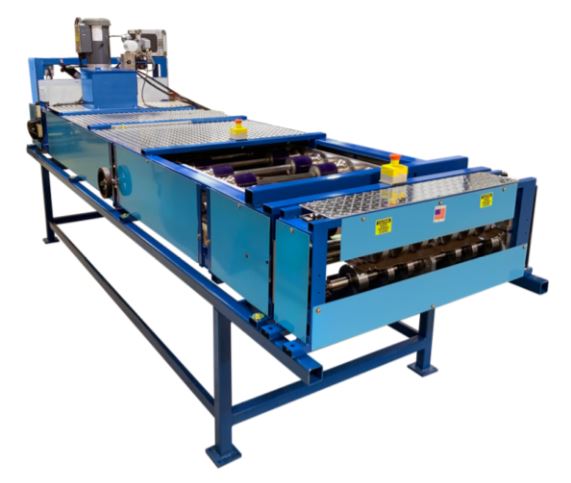

Rollformer 5V Crimp Panel hydraulic panformer
SKU: RF5V
Call for Status and Pricing
Although originally an agricultural panel, 5V crimp is now a popular residential panel. Mount it in your shop or make it portable and take it to the jobsite. The 5V machine features a hydraulic drive and front hydraulic scissors shear, adjustable panel width capability 14″ to 28″. The “traditional size” 5V Panel is feeding the machine 27 1/2″ coil stock, giving you a 26″ wide finished panel with 24″ coverage with the overlap. Standard Features
- Forming Stages – 14
- Width – adjustable 14″- 28″ Panels
- Power – 3HP Electric-Hydraulic
- Shear – precut/scissors Speed – 40 fpm
- Length – 12 ft Weight – 2,000 lbs
- Materials: Steel – 28ga to 24ga Aluminum – .024 to .032 Copper – 16oz max
- Digital Controller – recommended for fully automatic operation
- Striation Rib Attachment
- Machine Stand
- 3000 Lbs. x 30” Decoiler
Specifications
| Collection | Machinery |
|---|---|
| Manufacturer | Rollformer |
| Inventory Type | New |
| Machine Type | Panel Forming |
| Applications | Roofing |
| Item Number | RF5V |
