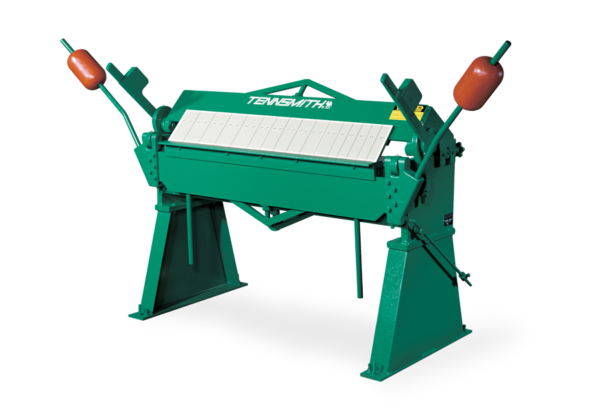

Tennsmith HBU48-12 bench model box and pan brake

SKU: TU4812

In StockReady To Ship

The Model HBU48-12 can handle 12-gauge and lighter materials and is ideal for both box and pan and straight bending in hot and cold rolled plate, stainless steel, aluminum and heavy plastic. Ample clamping and nose bar adjustments allow for the bend radius necessary for your application. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity. The HBU48-12 features a removable apron insert for 1/4 inch bends in lighter material. The upper leaf adjustment screws feature thrust bearings to prevent upper beam creep. Ductile steel clamp handles, heavy counterweights, and an apron stop rod add to the brake’s ease of operation. The removeable fingers are case hardened for long service. Tennsmith’s box and pan hand brake is a productive addition to any shop doing prototype or design work, fabrication, or short run production in heavier materials.


Inventory Type
Machine Type
Applications , ,
Item Number
