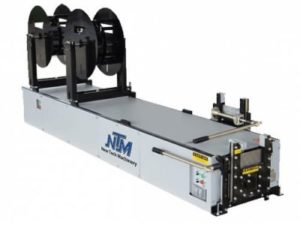

NTM Mach II 5″/6″ Gutter Machine
SKU: NTM56COMBO
$0.0
Call for Status and Pricing
The award-winning MACH II™ has taken the seamless gutter industry to a whole new level.

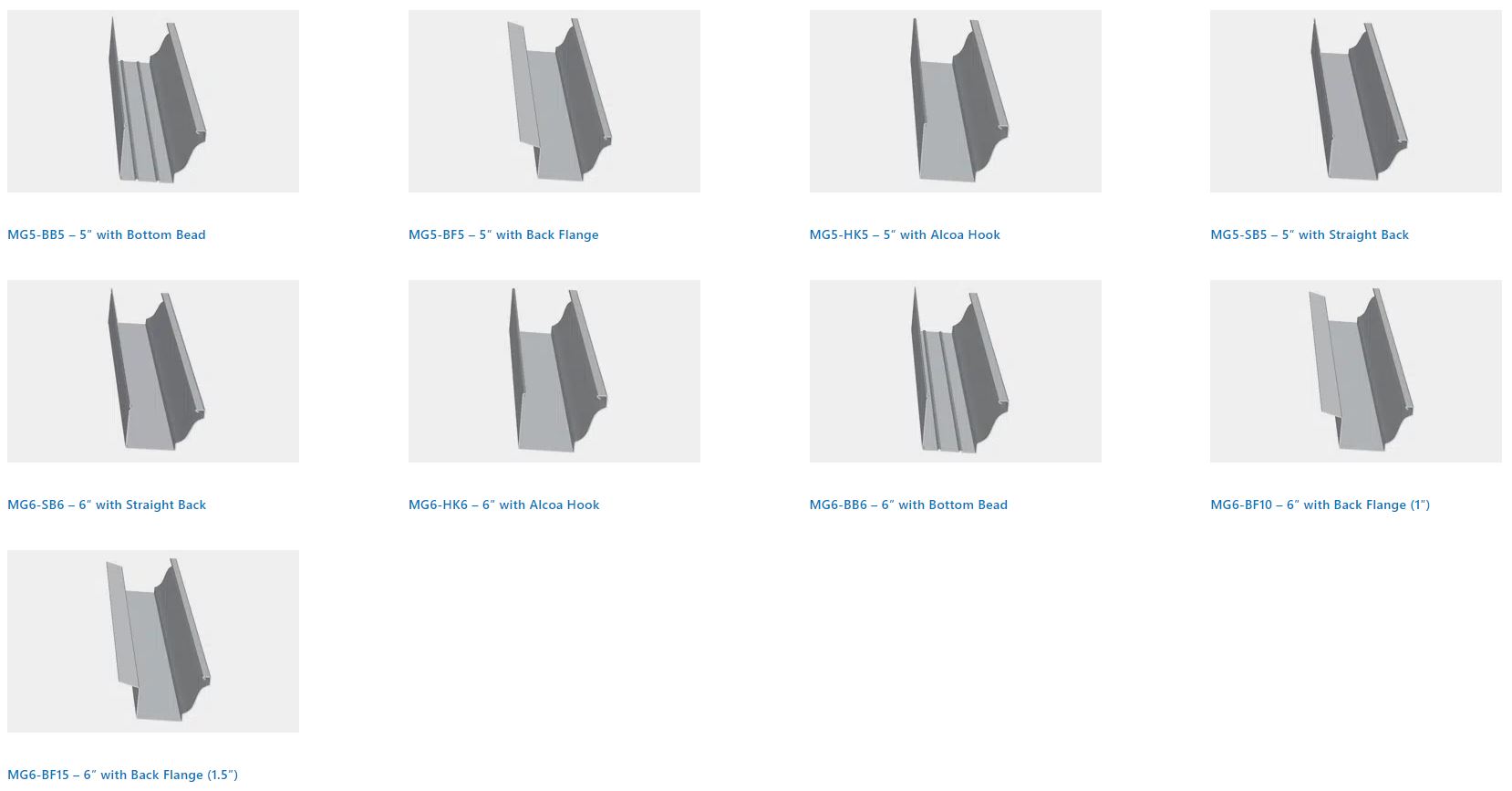

5″, 6”, & 5″/6” Combo Gutter Machines — The Original Polyurethane Drive System
Standard features:
- Polyurethane Drive Rollers
- Two 360° Rotatable Reel Stands for Easy Coil Loading
- Stainless Steel Forming Rollers
- Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Forward Pulling, Easy Cut Shear for Accuracy
- Industry’s Best Warranty
- Power Interruption Safety Circuit
- Easy Lift Reels
Warranties:
Warranty:
New Tech Gutter Machine provides a limited three-year part and NTM in-house labor warranty.

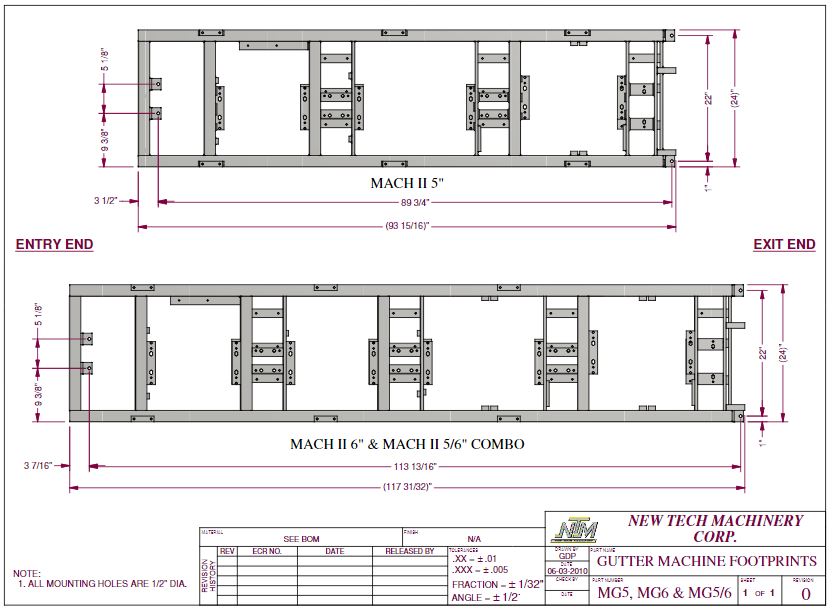

Specifications:
5” Gutter Machine
- Length: 8’ (2.4m)
- Width: 2’ (.6m)
- Height: 4’ (1.2m)
- Weight: 1,000 lbs. (454kg)
6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle
- Height: 4’ (1.2m)
- Weight: 1,250 lbs. (570kg)
5″/6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle and Extra Shear
- Height: 4’ (1.2m)
- Weight: 1,350 lbs. (610kg)
Speed
- 50 ft./min (15m/min) Approx.
Materials Formed
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
Shear
- Manually Powered
- Hardened Tool Steel Blades & Shear Dies
Material Width
- 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
- 6” Gutter: 15” (380mm)
Drive
- Electrically Driven Polyurethane Rollers
Maximum Coil Weight
- Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
Maximum Outside Diameter for Coil
- 30″ (762mm) on reel
Specifications
| Inventory Type | New |
|---|---|
| Item Number | NTM56COMBO |
