Lockformer Vulcan Plus Plasma Cutting System
SKU: LFVULCAN
Call for Status and Pricing

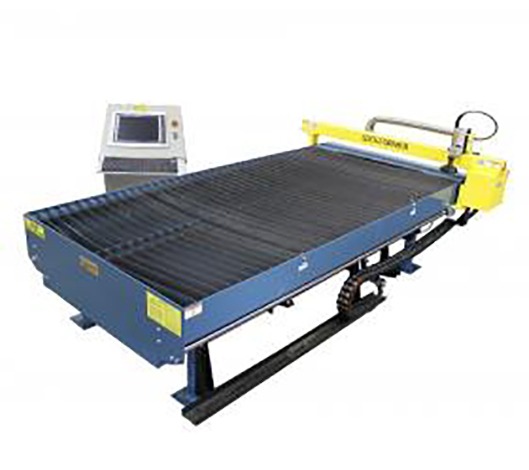

The Lockformer VulcanPlus Sheet Metal Plasma Cutting System is the benchmark in plasma cutting systems. Loaded with features for unmatched accuracy and precision, this system also has a capacity of 3/8″ and 1/2″ mild steel with a positioning speed of 3,000 IPM Max — the fastest cutting, positioning, and traversing times in the industry. The fixture-welded 3 x 3 steel tube construction ensures the frame will be as perfectly aligned today it will be years from now. The virtually indestructible plug-in components are standard and everything is protected — motors and drive systems are never exposed. Plus, the three (3) servo motors, planetary gears, and single-shaft belt are the most accurate in the industry.
System features:
- All Premium “plug-in” components
- Fixture-welded, 3″ x 3″ steel tubing framework
- Stand-alone control console
- All axis home positioning using motor torque measurement
- 8” x 8” steel table leg pads with leveling feature
- Dual Y drive
- Double deck, 24 strand steel, precision reinforced radial timing belts
- HIWIN® linear x-axis bearing and way
- 3″ diameter x 128″ long, turned, ground and polished Y-axis guidance rail
- Precision cam followers
- X-axis brush guard
- Steel enclosed housing for X-axis servo drive motor
Hypertherm PowerMax45 Plasma Cutter features:
- 50% duty cycle at 45 amp output
- Solid-state inverter power supply with output variable from 20 to 45 amps optimum performance on thickness’ from 28 gauge to 1/4″ metal
- Conical flow nozzle increases arc energy density for superior cut quality with little dross
- Patent-pending shield reduces dross buildup and enables smoother drag cutting for a better cut
- Hypertherm-shielded nozzle design to increase consumable life
- Universal power supply 220V AC single phase power supply
- CNC interface and fast-connect torch connection increases versatility
- Power-cool design cools internal components more effectively for greater system reliability and improved uptime
- Full 3 year power supply warranty and a 1-year torch warranty
- 3/8″ maximum cutting ability Powermax65 available as an option
Machine control features:
- B&R Machine Controller built for demanding industrial duty applications
- Lockformer 759 CNC-TS control system with 15″ color graphic industrial touch screen
- Windows 10 VS Control software architecture
- Digital drive devices
- Manual speed increase/decrease override
- Kerf compensation
- Auto home sense to set 0/0 automatically
- Automatic corner slow down
- Brushless AC servo motors with resolver feedback
- Remote safety stop switches and current limiting drives for safety
Table features:
- 1/4″ steel plate table perimeter
- 3″ x 16 ga. CRS, multi-directional X or Y sheet support slats
- Slats can be configured for either “side-load” or “endload” of the table
- Exclusive gull-wing table design
- Rectangular exhaust plenum at the back end of the table for easy access connection
- 10″ x 12″ table exhaust ducting of 20 gauge galvanized TDC four bolt connector
- Strategically located emergency stops [1 = controller; 1 = x-axis carriage]
- 3 surface milled “L” bracket sheet stops
Software and Computer includes:
- Rectangular, drop cheek, square to round
- Round and oval complete
- Super and manual segmenting
- Automatic shape nesting and rotational nesting for minimum scrap
- Holes cutting in fittings/round/slot/square/oval
- 3-D picture preview and flat pattern layout
- Splitter vanes
- Rod re-enforcing holes cut in fitting
- Insulating cutting software
- Vulcan parts (special shape CAD program)
- Two user input station license
- Easily create and customize — color-coded labels and reports
- Microsoft Windows 10 Operating System
- Two printers
Specifications
| Collection | Machinery |
|---|---|
| Manufacturer | Lockformer, Mestek |
| Inventory Type | New |
| Machine Type | Plasma Cutter |
| Applications | General Fabrication, HVAC, Metal Fabrication, Roofing |
| Item Number | LFVULCAN |
