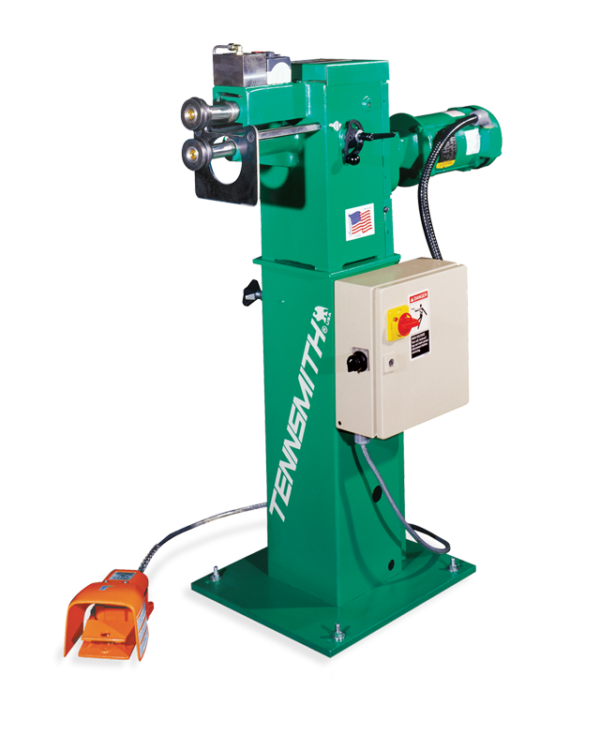

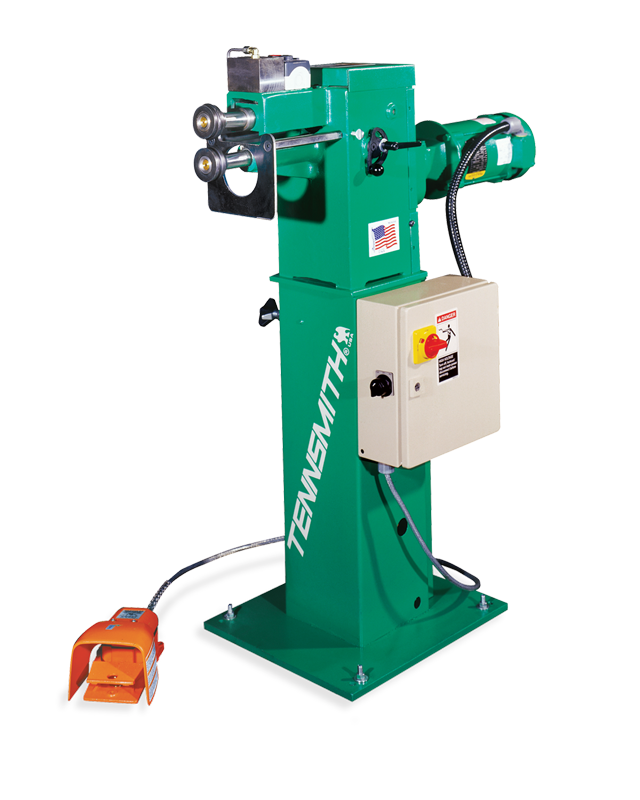

Tennsmith PR16 Powered Rotary Machine


Call for Status and Pricing

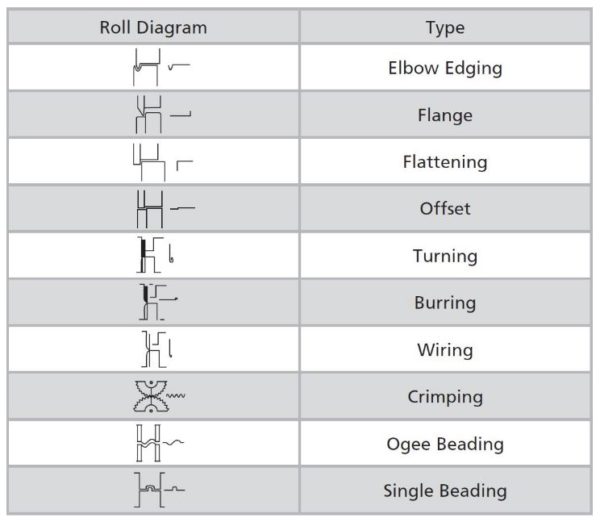

The PR-16 series powered rotary machines are capable of forming numerous applications up to 16ga mild steel material. Standard features include variable speed control, heavy cast body with steel body stand. Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring, and turning rolls are available. A 3/4-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit; an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit.
  • Shipping weight 350 lbs.
  • Capacity, Mild Steel: 16 gauge – 1.6mm
  • Capacity, Stainless Steel: 20 gauge – 1.0mm
  • Throat: 10 in. – 254mm
  • Distance, shaft center to center: 2-1/2 in. – 63.5mm
  • Gear Radio: 3:1
  • Working Speed Variable: 3 to 45 rpm
  • Motor: 3/4 hp
