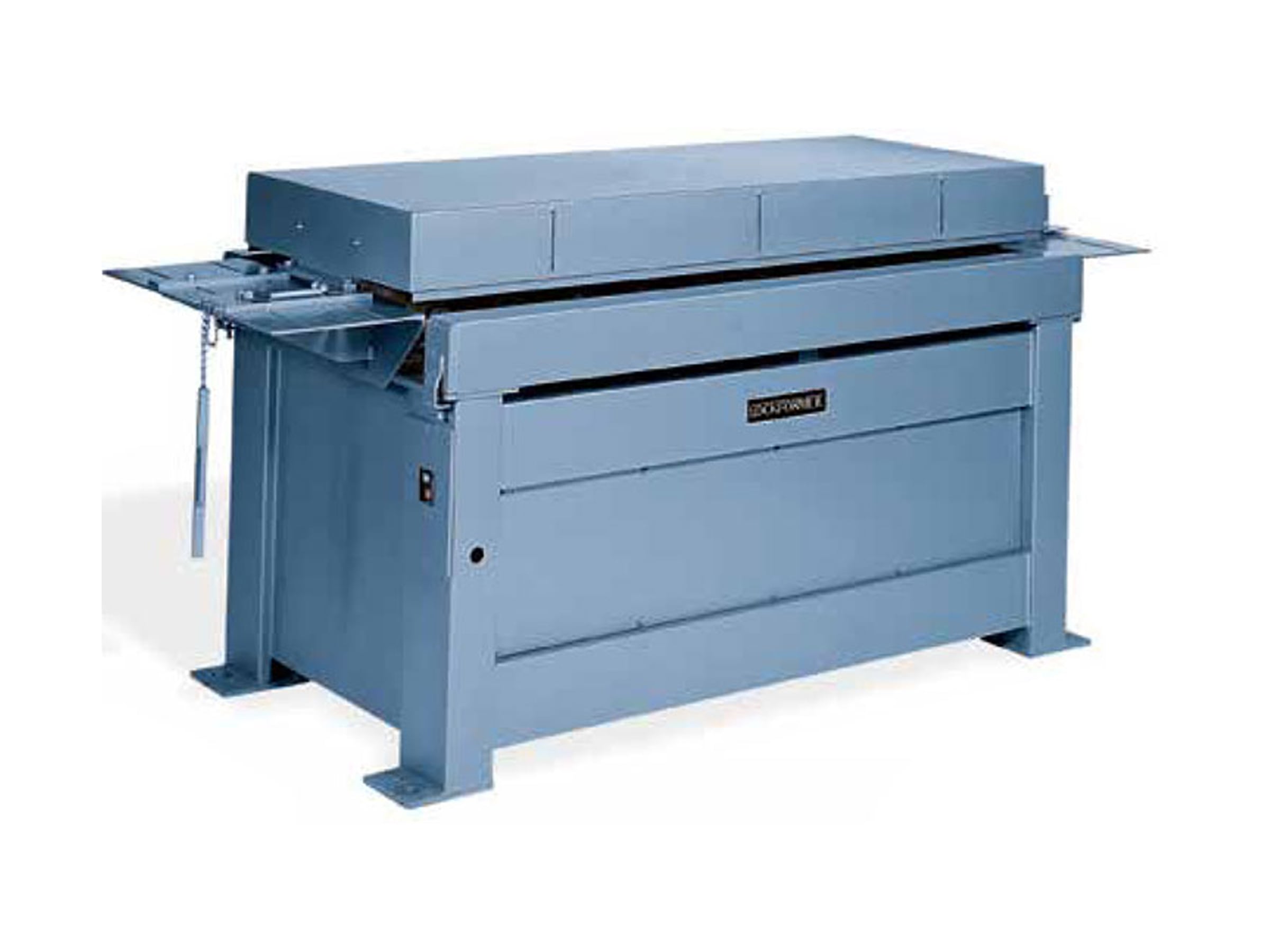

Lockformer Standing “S” Cleat machine – 10 station
SKU: LFSTANDS
Call for Status and Pricing
The Lockformer Standing “S” Cleat Roll Former | 10 Station allows you to — in one pass — form a shape that combines a conventional “S” cleat with a standing seam for greater strength and rigidity. This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating ducts. Included are double-extended auxiliary shafts for a variety of choices for optional roll form tooling. The design integrity and quality construction of its 10-station configuration will provide years of trouble-free service. ● Capacity: 20-26 gauge ● Depth of Pocket / Size: 1-1/8″ pocket. Uses approximately / 6-1/4″ material stretch out inboard ● Speed: 60 – 70 feet per minute ● Motor / Voltage: 5 hp, 230/460 volts, 60 cycle, 3 phase, A.C. 1,800 RPM
Specifications
Collection | Machinery |
---|---|
Manufacturer | Lockformer, Mestek |
Inventory Type | New |
Machine Type | Standing "S" Cleat |
Applications | HVAC |
Item Number | LFSTANDS |
