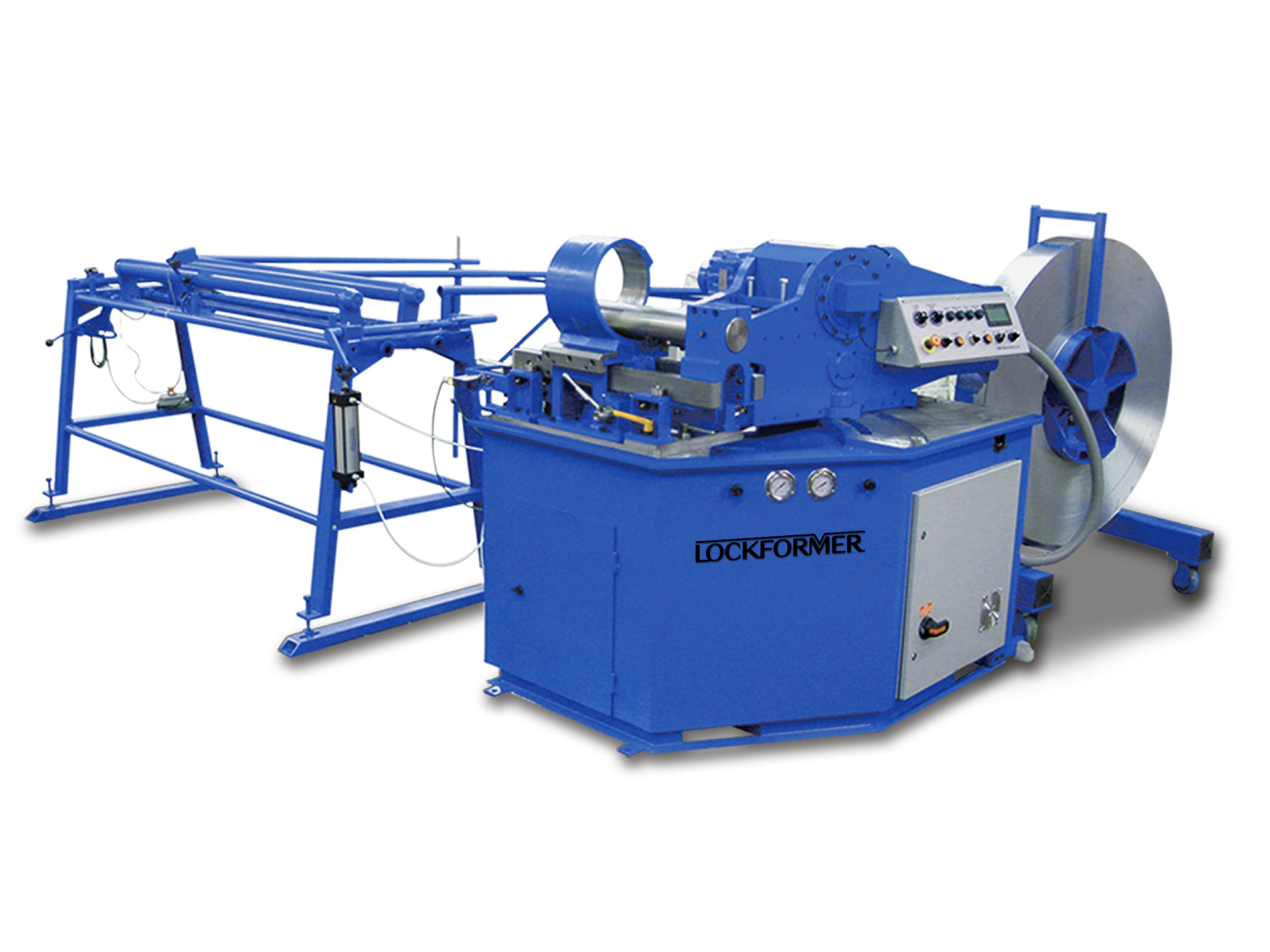

Lockformer Spiral Tube Former 1.2 for Spiral Duct
SKU: Lockformer Spiral Tubeformer
Call for Status and Pricing
Lockformer Spiral Tube Formers are revolutionary automatic spiral tube formers that combine the most advanced technology with one of the smallest footprints in the industry. Unlike other compact models, Lockformer Spiral Tube Formers will not sacrifice speed, power, or technology. There are two (2) models of Lockformer Tube Formers available:
- Model 1.2: up to 18 gauge (1.25 mm) thickness with a maximum speed of 235 ft/min (71 m/min)
- Model 2.0: from 28-14 gauge (0.50-2.0 mm) thickness with maximum speeds of 287-344 ft/min (84-104 m/min)
Features
The revolutionary, automatic Lockformer Spiral Tube Formers combine the most advanced technology with one of the smallest footprints in the industry. Available in two (2) models:
Model 1.2: produces spiral pipe up to 18 gauge (1.25 mm) thickness with a maximum speed of 235 ft/min (71 m/min)
Model 2.0: produces spiral pipe from 28-14 gauge (0.50-2.0 mm) thickness with maximum speeds of 287-344 ft/min (84-104 m/min) depending on gauge
Each Lockformer Spiral Tube Former is the most affordable machine in its class. Their unsurpassed features and reliability make them the best value in the industry. These features include:
- Self-diagnostics and digital length control
- Spiral Smart Technology™, user-friendly control system takes the guess work out of set-up and pressure settings for proper operation
- Flying Slitting Device for silent cutting tubes of 4″ diameter and maximum material thickness of 20 gauge
- 10″ standard run-off table
- Decoiler
- Unbeatable customer service offering technical support and parts
- Only compact unit in the industry that is fully automatic
- Ergonomically friendly to the operator
Specifications
Model
|
High-Speed Capacity
|
Diameter Range
|
Speed
|
Motor / Voltage
|
Dimensions / Weight
|
Model 1.2E
|
28-18 gauge galvanized steel
28-22 gauge stainless steel
|
3″- 64″
|
241 ft/min
|
15 Hp motor, 230V/60 A Or 15 Hp motor, 460V/ 40A
Special voltages available
|
Length: 72″
Width: 68″
Height: 62″
Weight: 3,000 lbs.
|
Model 2.0
|
28-16 gauge galvanized steel
28-20 gauge stainless steel
|
3″-100″
|
High Speed Capacity Mode: 344 ft/min
Heavy Gauge Capacity Mode: 287 ft/min
|
30 Hp motor, 460V/3 phase/60 Hz, 100A
Special voltages available
|
Length: 72″
Width: 78″
Height: 62″
Weight: 3,200 lbs.
|
Specifications
Manufacturer | Lockformer, Mestek |
---|---|
Inventory Type | New |
Machine Type | Spiral tubeformer, Tube Forming |
Applications | HVAC |
