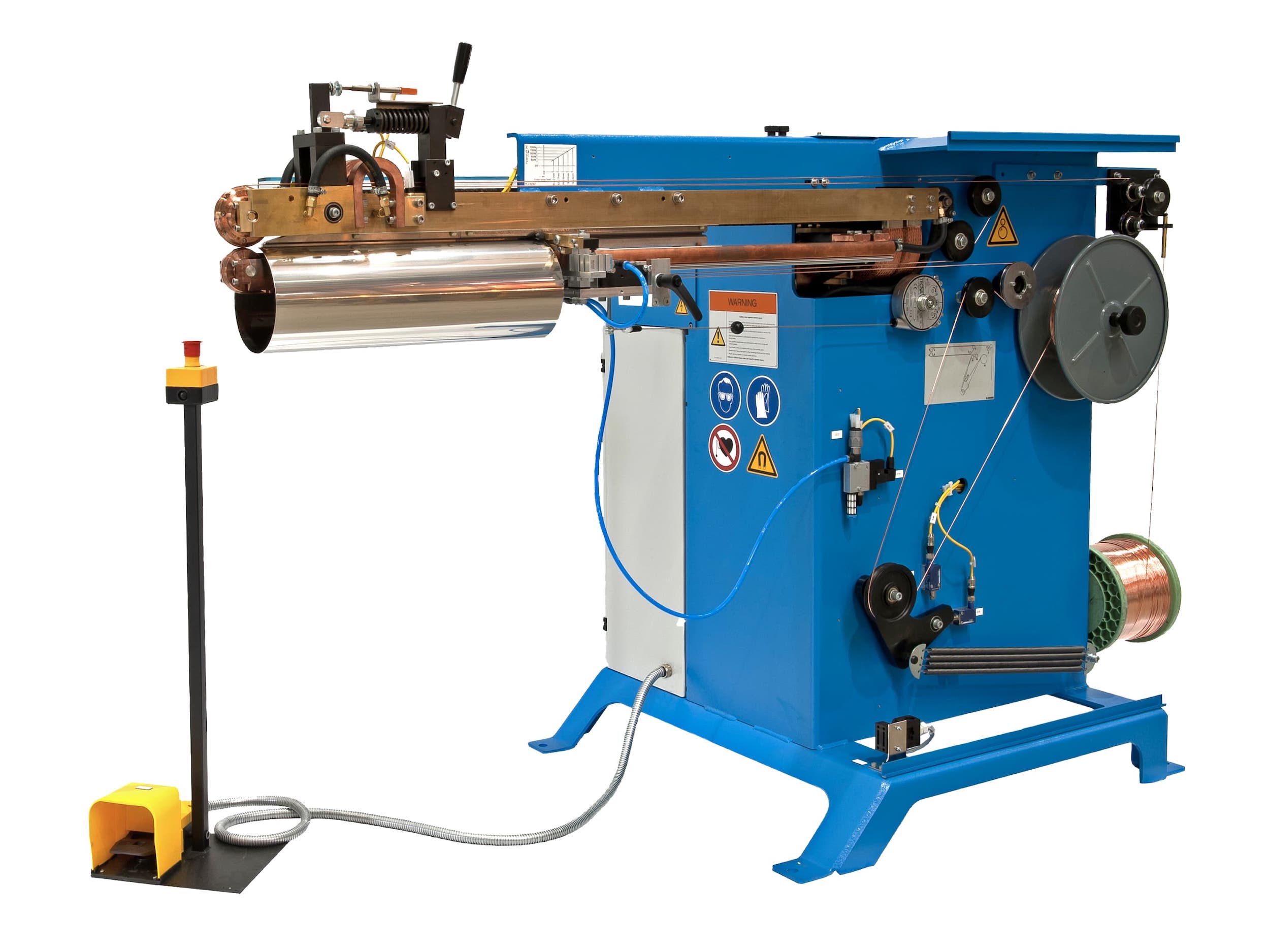

Lockformer QuickStitch Welder Quickstitch 60″


Call for Status and Pricing

The Lockformer QuickStitch Welding Machine is an all-purpose machine which is effective in any environment due to its simplicity and robustness. With the QuickStitch, a high-quality weld seam can be made without any adverse effect on the material to be welded. The electroplating remains undamaged, eliminating the need for expensive reworking, such as sealing or repainting. The weld seam is free of defects and meets all quality requirements in full.

The recyclable copper wire electrodes ensure that there’s no need for time-consuming reworking of the workpieces. The use of copper wire has significantly reduced the maintenance on the weld wheels and increased the life-span of the weld wheels as well.br>
The Lockformer QuickStitch Welding Machine has an adjustable weld speed of 3-49 ft/min (1-15 meter/min), creating a productive and efficient machine. The weld seams created are completely air-tight.br>
The system is simple to tune to various product dimensions and part geometries. The QuickStitch is available with arm lengths of 40″, 50″, and 60″ (1000, 1270, 1540 mm).


Inventory Type
Machine Type
Item Number
