Lockformer TDC-V: TDC Machine (12 Station) 18-24 ga


In StockReady To Ship

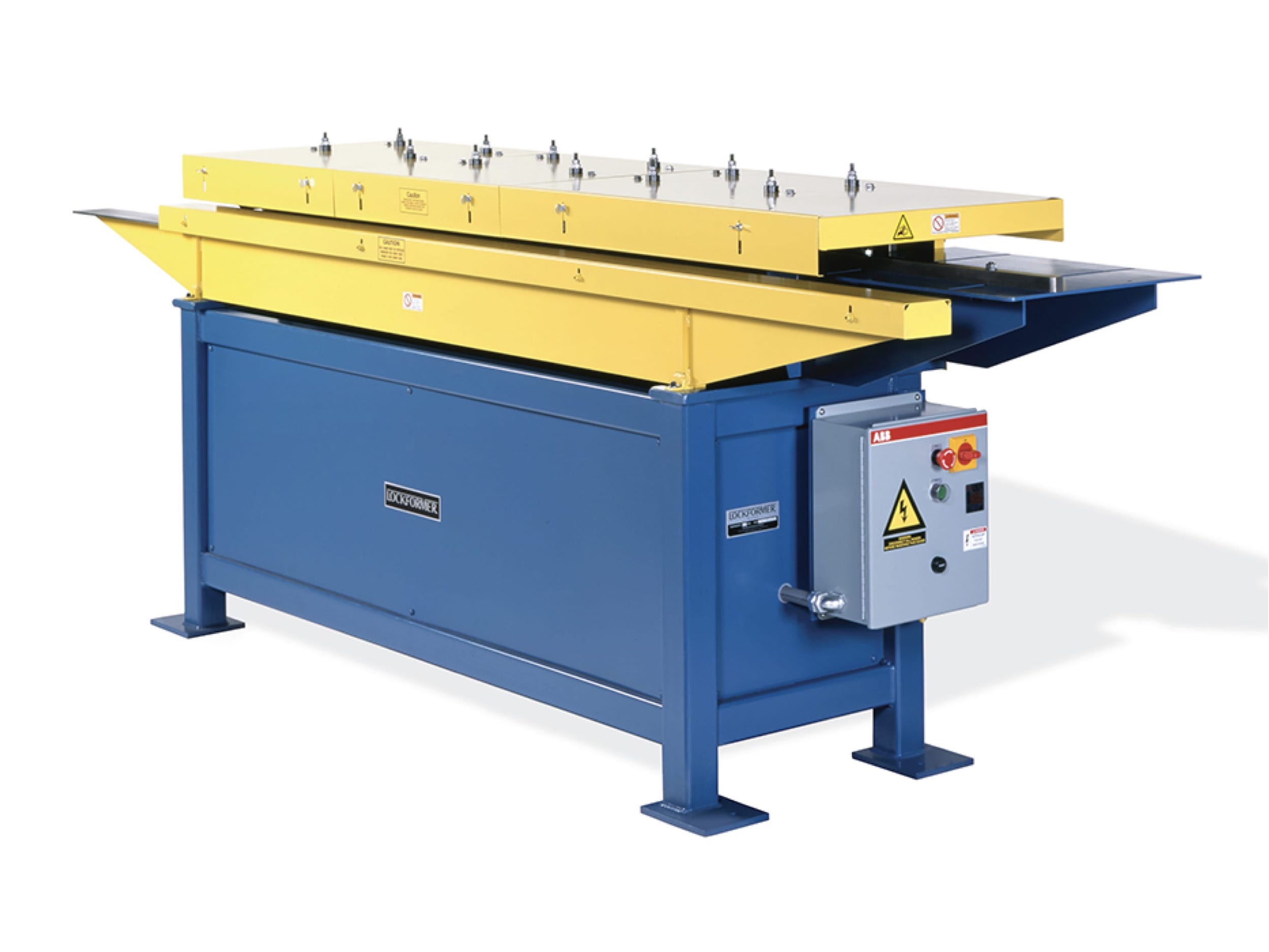

Lockformer Transverse Duct Connector (TDC) Roll Former | Model TDC V (12 Station) has 12 forming stations with two outboard positions (left and right) but no inboard position and produces transverse duct connector (TDC) flanges at speeds of up to 50 feet per minute. This is the only transverse duct connector machine on the market certified to comply with SMACNA Duct Construction Standard (DCS) T-25a based on actual laboratory tests across the full range of water gauges. Famous Lockformer quality construction with an industrial motor and gear box; high precision bearings; heavy duty two zone chassis; plate head construction; hardened and ground roll shafts all protected with a cabinet finished with Lockformer’s top-quality primer and paint finish. Optional rolls are available for TDC® Clip or Pittsburgh lock production. Also features extended shafts for mounting auxiliary rolls.


Manufacturer ,
Inventory Type
Machine Type
Item Number
